Trajectory investment workflow¶

Workflow¶

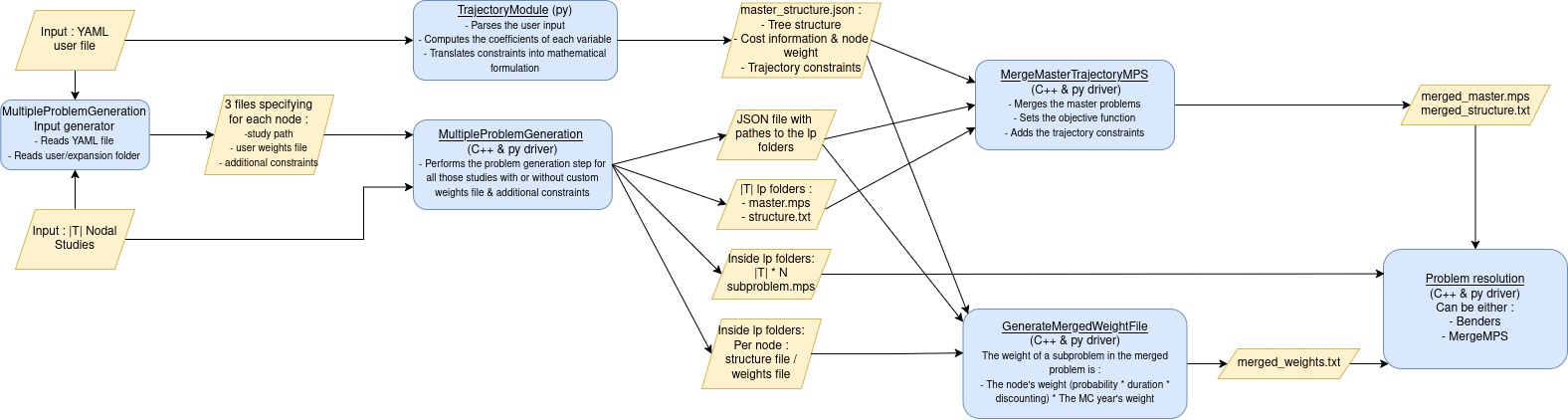

The complete workflow is composed of the following four "independent" steps : The first two steps are (order of execution does not matter) :

User input parsing & formatting : Parses and checks the user input, computes the relevant data and format it for later step.
Multiple problem generation : Runs the Xpansion problem generation for each study in the tree.
- Before running the multiple problem generation, generate the MultipleProblemGeneration input files.

Intermediary files :

master_merger_info.json : See this section for more details.
nodal_lp_info.json : See this section for more details.

The other two steps have to be executed after the first two :

Merging the generated master problems : Generates the final merged master problem for this tree.
Generating the final weights file : Generates a weights file to take into account the properties of each node and its subproblems.

File structure¶

The expected file structure at the --dataDir looks like :

.
├── input-trajectory.yaml
├── node_2030_study
│        ├── Desktop.ini
│        ├── input ...
│        ├── layers ...
│        ├── logs ...
│        ├── output ...
│        ├── settings ...
│        ├── study.antares
│        └── user
│            └── expansion
│                ├── candidates.ini
│                ├── capa ...
│                ├── constraints ...
│                ├── outer_loop ...
│                ├── sensitivity ...
│                ├── settings.ini
│                └── weights
│                    └── weights.txt
├── node_2040_study
│        ├── Desktop.ini
│        ├── input ...
│        ├── layers ...
│        ├── logs ...
│        ├── output ...
│        ├── settings ...
│        ├── study.antares
│        └── user
│            └── expansion
│                ├── candidates.ini
│                ├── capa ...
│                ├── constraints ...
│                ├── outer_loop ...
│                ├── sensitivity ...
│                ├── settings.ini
│                └── weights
│                    └── weights.txt
├── node_2050_A_study
│        ├── Desktop.ini
│        ├── input ...
│        ├── layers ...
│        ├── logs ...
│        ├── output ...
│        ├── settings ...
│        ├── study.antares
│        └── user
│            └── expansion
│                ├── candidates.ini
│                ├── capa ...
│                ├── constraints ...
│                ├── outer_loop ...
│                ├── sensitivity ...
│                ├── settings.ini
│                └── weights
│                    └── weights.txt
└── node_2050_B_study
         ├── Desktop.ini
         ├── input ...
         ├── layers ...
         ├── logs ...
         ├── output ...
         ├── settings ...
         ├── study.antares
         └── user
             └── expansion
                 ├── candidates.ini
                 ├── capa ...
                 ├── constraints ...
                 ├── outer_loop ...
                 ├── sensitivity ...
                 ├── settings.ini
                 └── weights
                     └── weights.txt
